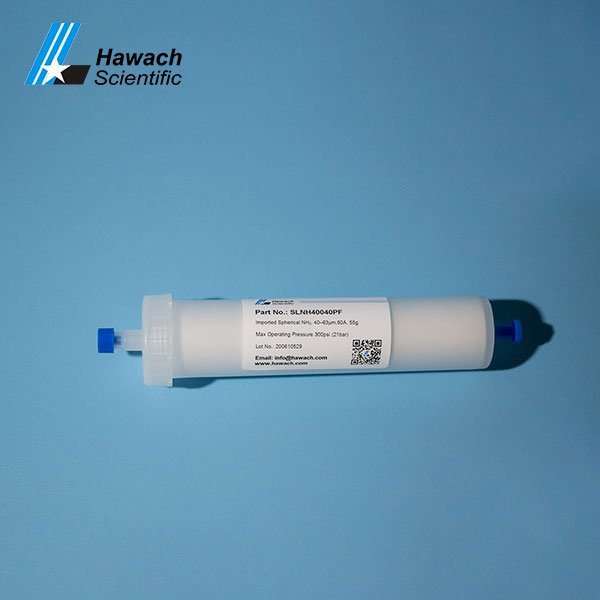

[Hawach Scientific] NH2 Flash Column

[Hawach Scientific]  NH2 Flash Column





Ordering Information



SLNHSP20004DF	Spherical NH2, 20-40μm, 4g	20
SLNHSP20012DF	Spherical NH2, 20-40μm, 12g	18
SLNHSP20025DF	Spherical NH2, 20-40μm, 25g	12
SLNHSP20040DF	Spherical NH2, 20-40μm, 40g	10
SLNHSP20080DF	Spherical NH2, 20-40μm, 80g	10
SLNHSP20120DF	Spherical NH2, 20-40μm, 120g	10
SLNHSP20220DF	Spherical NH2, 20-40μm, 220g	6
SLNHSP20330DF	Spherical NH2, 20-40μm, 330g	4

SLNH40004PF	40-63μm, 60Å, 5.9g	10-20	5.9mg-118mg	300/21	2
SLNH40012PF	40-63μm, 60Å, 23g	15-30	18mg-0.27g	300/21	1
SLNH40025PF	40-63μm, 60Å, 38g	15-30	28mg-0.42g	300/21	1
SLNH40040PF	40-63μm, 60Å, 55g	20-40	40mg-0.60g	300/21	1
SLNH40080PF	40-63μm, 60Å, 122g	30-60	90mg-1.35g	300/21	1
SLNH40120PF	40-63μm, 60Å, 180g	40-80	130mg-1.95g	300/21	1
SLNH40220PF	40-63μm, 60Å, 340g	50-100	245mg-3.68g	250/17	1
SLNH40330PF	40-63μm, 60Å, 475g	50-100	350mg-5.25g	250/17	1



Description of Spherical NH2 Flash Column

Spherical NH2 Flash Column has good retention for compounds which be capable of forming hydrogen bonds. The mobile phase water content with a slight effect on the flash chromatography reaction and ideally separation efficiency can be guaranteed.

Advantages of NH2 Flash Column

• ISO9001 approval, COA, and MSDS are available for each batch;
• The wide range of pore size and particle size for the wide application;
• Cartridge with easy connection to most of the instrument systems;
• Clean column and clean packing and excellent column pressure;
• Cartridge with a maximum operating pressure of up to 200 psi;
• Superior high-purity silica sorbent ensures excellent separation inefficiency.

Features

• Clean column and clean packing and excellent column pressure;
• The frits for the column from 4g to 40g with the pore size of 16~20um;
• Medical PP cartridge tube makes no extractable and wide compatibility;
• The ultrapure NH2 functional group bonded silica for icon exchange flash column;
• Compatible with most of the flash instruments such as Grace, Biotage, Moritex, Armen, etc.

Applications

Ideally for the purification of compounds mixed with basic properties.

When activated with non-polar solvents such as n-hexane, it can hydrogen bond with any molecule containing -OH, -NH, or -SH groups; in a water-based environment, pH <7.8, it can be used as a weak anion exchanger. NH2 filler matrix silica gel has an average particle size of 45 μm, an average pore diameter of 60Å, a pore volume of 0.80 cm3/g, and a specific surface area of 480 m2/g.



Technical Data



60Å

40μm-63μm

17%

500m2/g

6.3-7.2

3.0-5.0%
