[Hawach Scientific] Cellulose Acetate Syringe Filters

[Hawach Scientific] Cellulose Acetate Syringe Filters

Filter Media	Cellulose Acetate
Diameter	4mm	13mm	25mm	33mm	50mm
Housing	Medical PP
Pore Size	0.1μm, 0.22μm, 0.45μm, 0.8μm, 1.0μm, 3.0μm, 5.0μm
Filtration Area	0.2cm2	1.3cm2	4.9cm2	8.5cm2	19.8cm2
Maximum Pressure	5.2bar
Process Volume	2mL	10mL	100mL	200mL	5000mL
Pre-filter	1μm GF or PP
Hold-up Volume	< 10μL	< 50μL	< 100μL	< 200μL	< 350μL
Inlet	Female Luer Lock				Stepped barb
Outlet	Male Luer slip				Stepped barb
Operate temperature	60°C

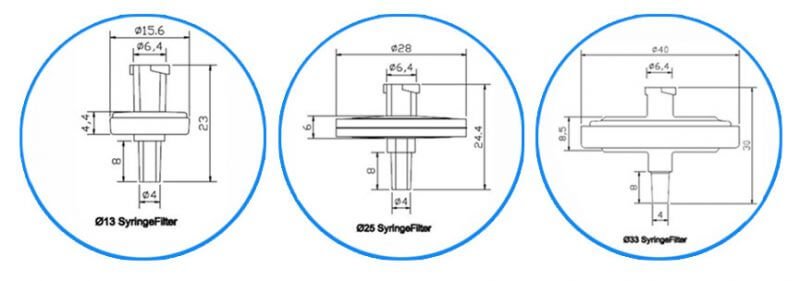

Instruction Drawing

Ordering Information

Item Code	Diameter(mm)	Pore Size(μm)	Pre-filter	Quantity/pk
SLCA0410N	4	0.1	No	100pcs
SLCA0422N		0.22
SLCA0445N		0.45
SLCA0480N		0.8
SLCA04100N		1
SLCA04300N		3
SLCA04500N		5
SLCA1310N	13	0.1	No	100pcs
SLCA1322N		0.22
SLCA1345N		0.45
SLCA1380N		0.8
SLCA13100N		1
SLCA13300N		3
SLCA13500N		5
SLCA1310NP		0.1	PP
SLCA1322NP		0.22
SLCA1345NP		0.45
SLCA1380NP		0.8
SLCA13100NP		1
SLCA13300NP		3
SLCA13500NP		5
SLCA1310NG		0.1	GF
SLCA1322NG		0.22
SLCA1345NG		0.45
SLCA1380NG		0.8
SLCA13100NG		1
SLCA13300NG		3
SLCA13500NG		5
SLCA2510N	25	0.1	No	100pcs
SLCA2522N		0.22
SLCA2545N		0.45
SLCA2580N		0.8
SLCA25100N		1
SLCA25300N		3
SLCA25500N		5
SLCA2510NP		0.1	PP
SLCA2522NP		0.22
SLCA2545NP		0.45
SLCA2580NP		0.8
SLCA25100NP		1
SLCA25300NP		3
SLCA25500NP		5
SLCA2510NG		0.1	GF
SLCA2522NG		0.22
SLCA2545NG		0.45
SLCA2580NG		0.8
SLCA25100NG		1
SLCA25300NG		3
SLCA25500NG		5
SLCA3310N	33	0.1	No	50pcs
SLCA3322N		0.22
SLCA3345N		0.45
SLCA3380N		0.8
SLCA33100N		1
SLCA33300N		3
SLCA33500N		5
SLCA3310NP		0.1	PP
SLCA3322NP		0.22
SLCA3345NP		0.45
SLCA3380NP		0.8
SLCA33100NP		1
SLCA33300NP		3
SLCA33500NP		5
SLCA3310NG		0.1	GF
SLCA3322NG		0.22
SLCA3345NG		0.45
SLCA3380NG		0.8
SLCA33100NG		1
SLCA33300NG		3
SLCA33500NG		5
SLCA5010N	50	0.1	No	25pcs
SLCA5022N		0.22
SLCA5045N		0.45
SLCA5080N		0.8
SLCA50100N		1
SLCA50300N		3
SLCA50500N		5
SLCA5010NP		0.1	PP
SLCA5022NP		0.22
SLCA5045NP		0.45
SLCA5080NP		0.8
SLCA50100NP		1
SLCA50300NP		3
SLCA50500NP		5
SLCA5010NG		0.1	GF
SLCA5022NG		0.22
SLCA5045NG		0.45
SLCA5080NG		0.8
SLCA50100NG		1
SLCA50300NG		3
SLCA50500NG		5

Description of Cellulose Acetate Syringe Filters

Cellulose Acetate Syringe Filters combine high flow rates and thermal stability with very low absorption characteristics, suitable for filtration of proteins and enzymes, sterilization of tissues, and culture media.

In HPLC analysis, the particle size of the chromatographic column packing is small and it is easy to be blocked by impurity particles. Therefore, samples and solvents need to be filtered in advance to remove particulate contaminants and protect the instrument.

Ion chromatography, which is commonly used in environmental analysis, also requires that no inorganic contaminants be introduced in sample pretreatment. Syringe filters can be used in HPLC analysis and IC analysis. Filtering sample solutions is an important step in the sample pretreatment process.

Advantage of Cellulose Acetate Syringe Filters

Hydrophilic CA syringe filters
Low protein binding
High throughput
Excellent strength and stability
Option standard 1um pre-filter providing increased sample handling capacity

Applications of Cellulose Acetate Syringe Filters

HPLC sample preparation
Biological sample preparation
Protein and enzyme filtration
Cell culture
Clarification of aqueous and alcohol solutions
Filtration of aqueous-based solutions or biologic samples

Chemical Compatibility

Incompatible with Organic solvents: Acids, NaOH, dichloromethane, chloroform, ketones, DMSO, THF
