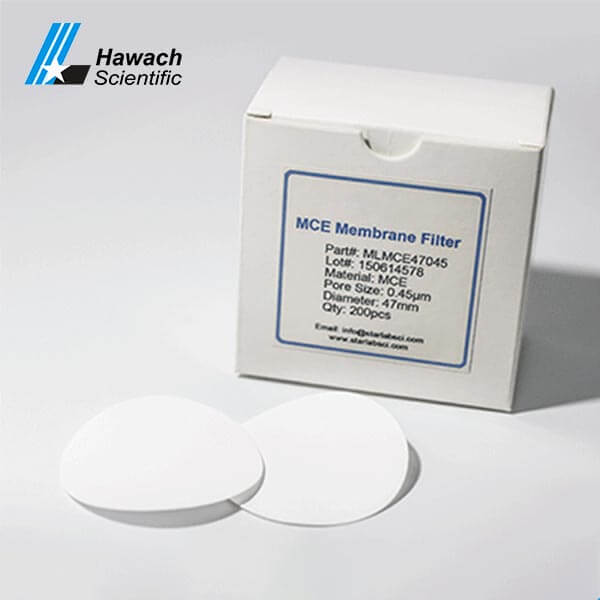

[Hawach Scientific] MCE Membrane Filter

[Hawach Scientific]  MCE Membrane Filter



MLMCE13010	0.10	13	No	400pcs
MLMCE25010	0.10	25	No	400pcs
MLMCE47010	0.10	47	No	100pcs
MLMCE50010	0.10	50	No	100pcs
MLMCE60010	0.10	60	No	100pcs
MLMCE90010	0.10	90	No	50pcs
MLMCE142010	0.10	142	No	50pcs
MLMCE150010	0.10	150	No	50pcs
MLMCE200010	0.10	200	No	50pcs
MLMCE293010	0.10	293	No	50pcs
MLMCE300010	0.10	300	No	50pcs
MLMCE13022	0.22	13	No	400pcs
MLMCE25022	0.22	25	No	400pcs
MLMCE47022	0.22	47	No	100pcs
MLMCE50022	0.22	50	No	100pcs
MLMCE60022	0.22	60	No	100pcs
MLMCE90022	0.22	90	No	50pcs
MLMCE142022	0.22	142	No	50pcs
MLMCE150022	0.22	150	No	50pcs
MLMCE200022	0.22	200	No	50pcs
MLMCE293022	0.22	293	No	50pcs
MLMCE300022	0.22	300	No	50pcs
MLMCE13045	0.45	13	No	400pcs
MLMCE25045	0.45	25	No	400pcs
MLMCE47045	0.45	47	No	100pcs
MLMCE50045	0.45	50	No	100pcs
MLMCE60045	0.45	60	No	100pcs
MLMCE90045	0.45	90	No	50pcs
MLMCE142045	0.45	142	No	50pcs
MLMCE150045	0.45	150	No	50pcs
MLMCE200045	0.45	200	No	50pcs
MLMCE293045	0.45	293	No	50pcs
MLMCE300045	0.45	300	No	50pcs
MLMCE13080	0.80	13	No	400pcs
MLMCE25080	0.80	25	No	400pcs
MLMCE47080	0.80	47	No	100pcs
MLMCE50080	0.80	50	No	100pcs
MLMCE60080	0.80	60	No	100pcs
MLMCE90080	0.80	90	No	50pcs
MLMCE142080	0.80	142	No	50pcs
MLMCE150080	0.80	150	No	50pcs
MLMCE200080	0.80	200	No	50pcs
MLMCE293080	0.80	293	No	50pcs
MLMCE300080	0.80	300	No	50pcs
MLMCE13100	1.0	13	No	400pcs
MLMCE25100	1.0	25	No	400pcs
MLMCE47100	1.0	47	No	100pcs
MLMCE50100	1.0	50	No	100pcs
MLMCE60100	1.0	60	No	100pcs
MLMCE90100	1.0	90	No	50pcs
MLMCE142100	1.0	142	No	50pcs
MLMCE150100	1.0	150	No	50pcs
MLMCE200100	1.0	200	No	50pcs
MLMCE293100	1.0	293	No	50pcs
MLMCE300100	1.0	300	No	50pcs
MLMCE13300	3.0	13	No	400pcs
MLMCE25300	3.0	25	No	400pcs
MLMCE47300	3.0	47	No	100pcs
MLMCE50300	3.0	50	No	100pcs
MLMCE60300	3.0	60	No	100pcs
MLMCE90300	3.0	90	No	50pcs
MLMCE142300	3.0	142	No	50pcs
MLMCE150300	3.0	150	No	50pcs
MLMCE200300	3.0	200	No	50pcs
MLMCE293300	3.0	293	No	50pcs
MLMCE300300	3.0	300	No	50pcs
MLMCE13500	5.0	13	No	400pcs
MLMCE25500	5.0	25	No	400pcs
MLMCE47500	5.0	47	No	100pcs
MLMCE50500	5.0	50	No	100pcs
MLMCE60500	5.0	60	No	100pcs
MLMCE90500	5.0	90	No	50pcs
MLMCE142500	5.0	142	No	50pcs
MLMCE150500	5.0	150	No	50pcs
MLMCE200500	5.0	200	No	50pcs
MLMCE293500	5.0	293	No	50pcs
MLMCE300010	5.0	300	No	50pcs





Pore Size	0.1 μm, 0.22 μm, 0.45 μm, 0.8 μm, 1.0 μm, 3.0 μm, 5.0 μm
Diameter	13 mm, 25 mm, 47 mm, 90 mm, 142 mm, 293 mm
Bubble Point	≧0.31 MPa(0.22 μm)	≧0.15 MPa(0.45 μm)
Flow Rate@23 °C, H2O	≥ 10 mL/min/cm2@1 bar(0.22 μm)	≥ 20 mL/min/cm2@1 bar(0.45 μm)
Thickness	85 – 100 μm
PH Range	3.5 – 8
Chemical compatibility	Ideal for aqueous based samples
Maximum Operating Pressure	4.2 bar@23 °C	1.5 bar@85 °C



Features

• Hydrophilic membrane filter;
• Precise pores and high protein binding capacity;
• Made by the mixture of Cellulose Nitrate and Cellulose Acetate fibers to deliver superior flow rates;
• High performance with a competitive price.

Applications of MCE Membrane Filter

• Use for clarifying or sterilizing aqueous solutions;
• Gas particulate and bacteria filtration;
• Oil particulate and bacteria filtration;
• Other solvent particulate and bacteria filtration;
• Same as 0.45 micron filter paper/ Cellulose Acetate Membrane Filter, commonly used in biology;
• Sterilization and particle removal in the laboratory and small-scale test processes;
• Cultivation Sterilization and filtration of base and culture solution;
• Determination of flora in water.

MCE membrane filter is a kind of general-purpose filter media that is used in many applications related to the microbiological field and food fields. We also have MCE Gridded Membrane Filter for your choice.



MCE Membrane filter also called Mixed Cellulose Esters membrane filter, is a no-sterile membrane. It has good hydrophilicity, high porosity, and filtration speed.

MCE membranes filter offer high recovery rates and superior flow rates, and the pore size covers 0.1um, 0.22um, 0.45um, 0.8um, 1.0um, 3.0um, 5.0um, and the diameter from 13mm, 25mm, 47mm, 50mm, 60mm, 90mm, 142mm, 150mm, 200mm, 293mm, 300mm. We also can customize the size you want.

Advantages

• High performance in Microbiological and particulate analysis;
• High protein binding than the CA membrane filter.
