[Trialtus Bioscience] Starter Kit: 1-mL Im7 4B Gravity Flow Column

by 휴바이오랩(Hubiolab) 2024. 5. 3.

[Trialtus Bioscience]  Starter Kit: 1-mL Im7 4B Gravity Flow Column

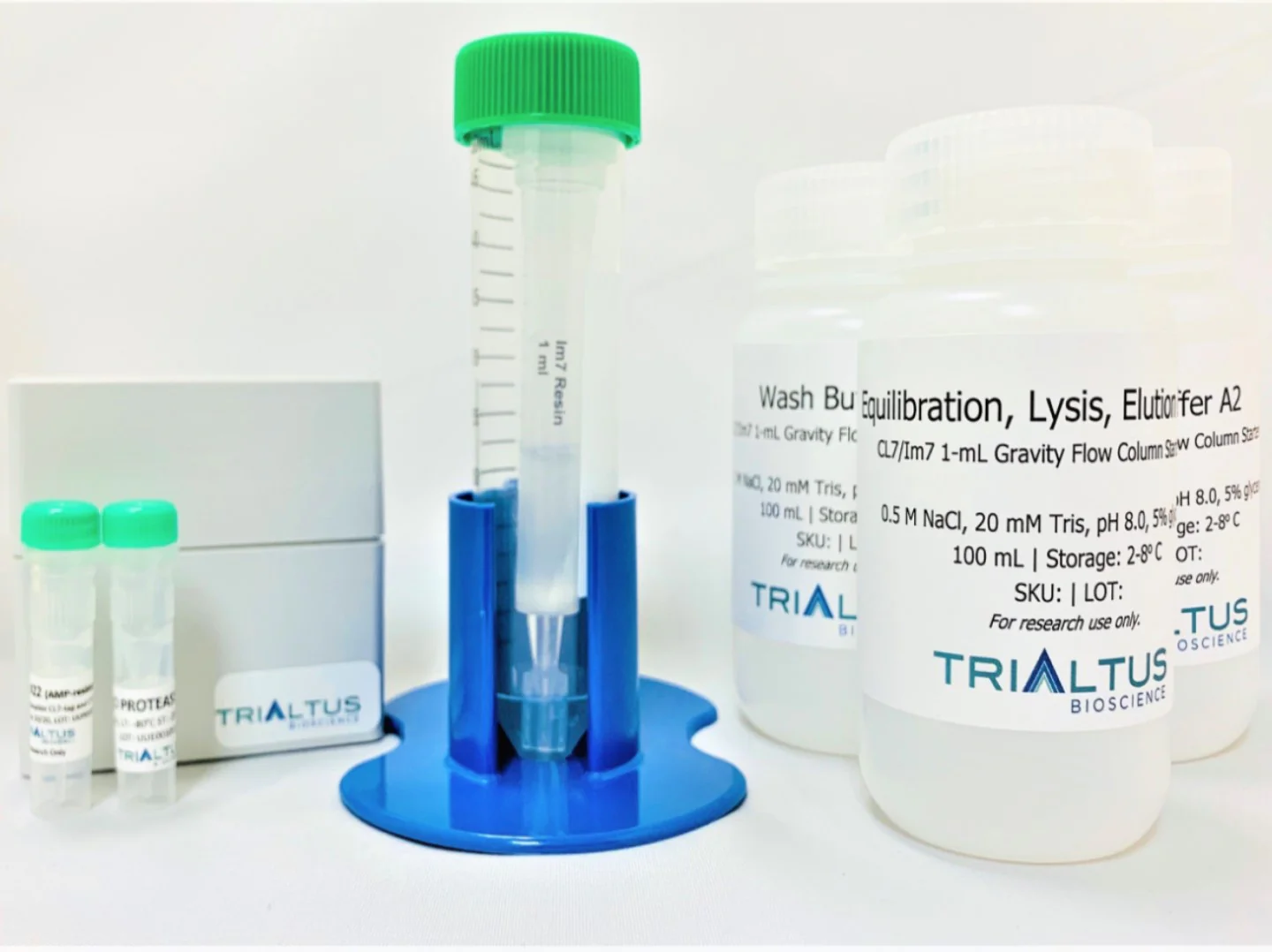

The 1-mL Im7 4B Resin Gravity Flow Column Starter Kit provides all essential buffers and reagents necessary for the purification of CL7 tagged proteins. Please select a plasmid and an elution protease.


--

The Im7 4B 1-mL Gravity Flow Column Starter Kit consists of:

  • Equilibration, Lysis, Elution Buffer (100 mL)
  • Wash Buffer A1 (High Salt) (100 mL)
  • Wash Buffer A2 (No Salt) (100 mL)
  • Gentle Elution Buffer (100 mL)
  • 1-mL Im7 4B Resin Gravity Flow Column (1 mL)
  • Elution Protease (1 mg)
  • Plasmid (100 ng; 30 ng/µL)
  • Short Protocol

Please refer to the comprehensive protocols for the exact purification protocol and Lysis and Elution buffer preparation.

SPECIFICATIONS (Im7 Resin)


CONCENTRATION | Crosslinked agarose 4B beads (45 – 165 μm)


PH STABILITY | The Im7 4B protein is stable on the beads at pH 3-10. However, CL7/Im7 binding is stable at pH 4.2 – 10 only.


SALT STABILITY |  4M NaCl tested


BINDING CAPACITY | ≥ 60 mg CL7/mL resin


STORAGE/SHIPPING CONCENTRATION | 50/50 buffer/resin slurry. Available in 1-mL and 5-mL columns.



RECOMMENDED OPERATING TEMPERATURE | 4°C or room temperature


REACTIVATION DETAILS | To remove the CL7 protein and reactivate the resin, wash the column with Gdn-HCl, exchanging it into physiological buffer.

EXPIRATION
Resin - 12 months when stored as directed
Plasmid - 6 months when stored as directed
Protease - 6 months when stored as directed

Additional information: Target protein characteristics (e.g., protein size, conformation, and concentration); flow rate (i.e., lower flow rates may increase the binding capacity); and other parameters (e.g., pH and temperature) can affect the column binding capacity.

Use of TriAltus products falls under our limited license agreement and is for non-profit research use only. For commercial use, please contact us for licensing.
