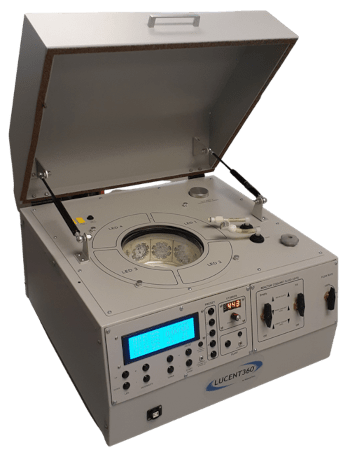

[HepatoChem] Lucent 360™ Advanced Photoreactor

[HepatoChem]  Lucent 360™ Advanced Photoreactor



The Lucent360™ Advanced Photoreactor enables parallel (screen), batch and flow with wavelength,light intensity and temperature control in one device.

• Multiple vial formats and configurations (from 0.3ml to 700 ml)
• Temperature controlled (0° to 80° C) with thermostatic fluid
• Interchangeable LED light modules (365 nm through 525 nm)
• Screen up to 4 wavelengths and/or light intensities simultaneously
• Heavy duty magnetic stirring

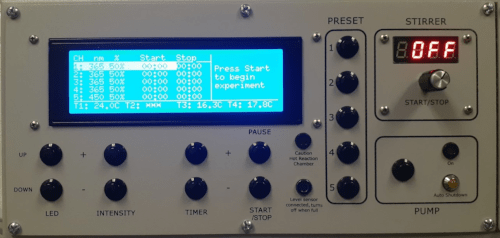

• Pre-set your favorite experiments for quick repeatability





Unparalleled Control of Light Wavelengths and Intensities

The Lucent360™ includes 5 light modules that can be controlled independently. Each module has multiple LEDs that operate at a specific wavelength.

The light modules are interchangeable and, when using a light screening holder in the reaction chamber, enables conditions that can screen multiple wavelengths or light intensities simultaneously.

Light Irradiance Screening

Each light module is set at different intensity to investigate quantum yield of your reactions.

Module 1: 100%  Module 2: 75%
Module 3: 50%    Module 4: 25%

See example

Wavelength Screening

Each light can be set with a different wavelengths to study several catalytic systems simultaneously.

Module 1: 365 nm   Module 2: 425 nm
Module 3: 450 nm   Module 4: 525 nm

See example

Timecourse Experiment

Each light module can be set with different irradiation time in parallel or in sequence.

Module 1: 30 min   Module 2: 60 min
Module 3: 120 min Module 4: 240 nm

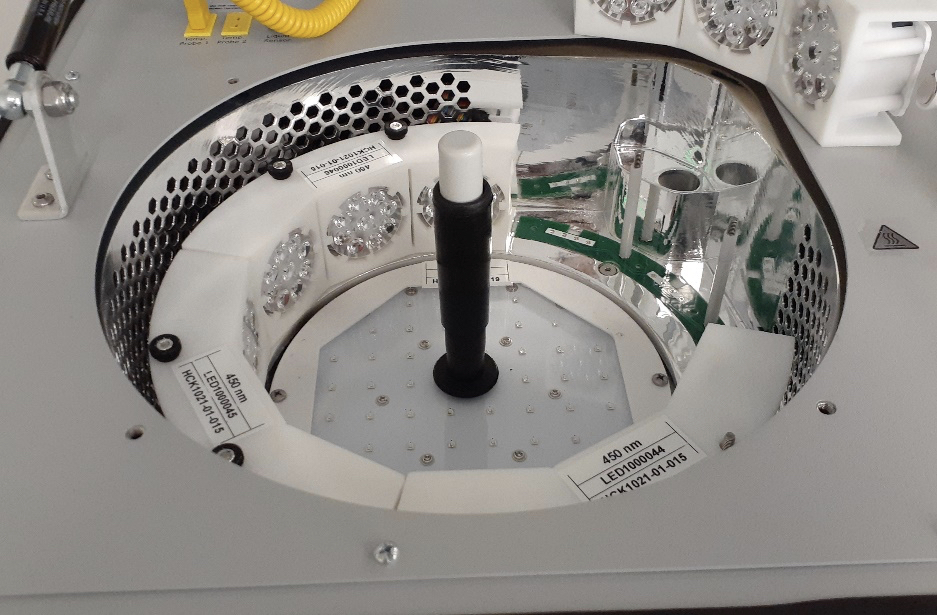

Interchangeable Light Modules

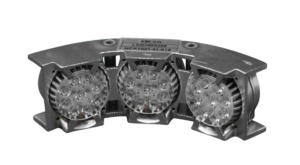

Side Light Module

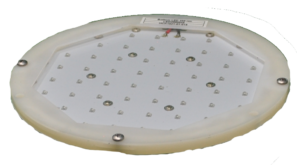

Bottom Light Module

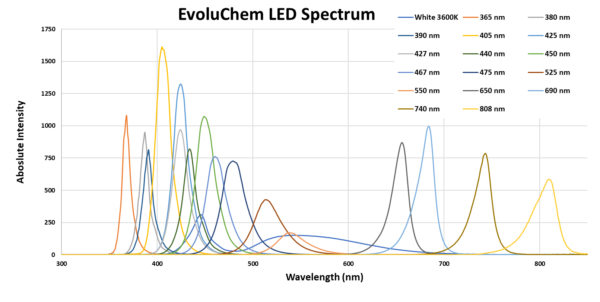

Wavelengths Available:
254 nm, 300 nm, 310 nm, 340 nm, 365 nm, 380 nm, 390 nm, 405 nm, 427 nm, 440 nm, 450 nm, 475 nm, 505 nm, 650 nm, 740 and 808 nm.
