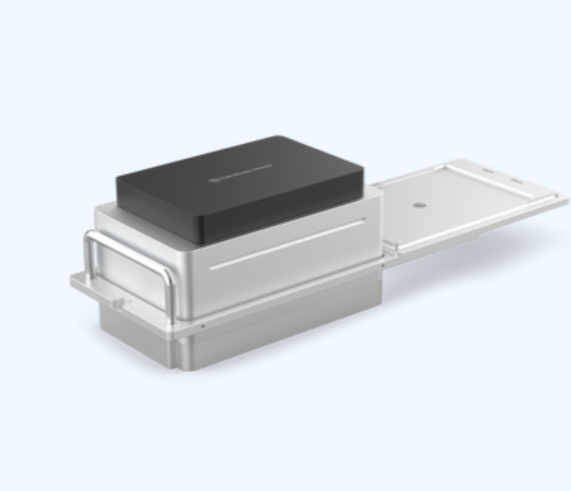

[Opentrons Labworks] Opentrons Flex Absorbance Plate Reader Module GEN1

[Opentrons Labworks] Opentrons Flex Absorbance Plate Reader Module GEN1





Tech Specs

Dimensions

Reader: 9.6 x 15.5 x 5.7 cm (w/l/h)

Adapter: 8.6 x 12.8 x 1.7 cm (w/l/h)

Weight

Illumination unit: 435g

Detection unit: 355g

Detection Method

Absorbance

Detection Mode

Endpoint, Kinetic

Microplate Type

96-well microplates (flat bottom)

Photometric Range

0.0–4.0 OD (optical density)

Resolution

0.001 OD (optical density)

Power Supply

USB connection 5 V

Power Input

2.5 Watts

Wavelength Filter Settings

450 nm, 562 nm, 600 nm, 650nm, custom wavelengths available

Detector

96 Photodiodes

Linearity

405 nm: ≤ 1.5% from 0.0 – 2.0 OD; ≤ 3.0% from 2.0 – 3.0 OD



≥ 450 nm: ≤ 1.0% from 0.0 – 2.0 OD; ≤ 1.5% from 2.0 – 3.0 OD

Accuracy

405 nm: ≤ 1.5% + 0.010 OD from 0.0 – 2.0 OD; ≤ 3.0% + 0.010 OD from 2.0 – 3.0 OD



≥ 450 nm: ≤ 1.0% + 0.010 OD from 0.0 – 2.0 OD; ≤ 1.5% + 0.010 OD from 2.0 – 3.0 OD

Reproducibility

≤ 0.5 % + 0.005 OD from 0.0–2.0 OD; ≤ 1 % + 0.010 OD from 2.0–3.0 OD



Features

Fully automated preparation, loading, and reading

Multiple wavelengths supporting a range of applications

Modular installation and easy operation





The Opentrons Flex Absorbance Plate Reader Module is a fully automated solution for absorbance-based assays. Capable of detecting absorbance in the 400-1000 nm range, it is optimized for a broad array of applications, including protein quantification, sample normalization, cell viability assays, and bacterial growth monitoring.

This module facilitates complete walkaway automation, enabling high-throughput data collection with no manual intervention. Paired with the Opentrons Flex Gripper, it automates every step from reagent prep to plate transfer to measurement, ensuring consistent and reproducible results.

The Opentrons Flex Absorbance Plate Reader Module is not available for sale in Europe.*
