[HepatoChem] PhotoRedox UV/Vis

[HepatoChem]  PhotoRedox UV/Vis

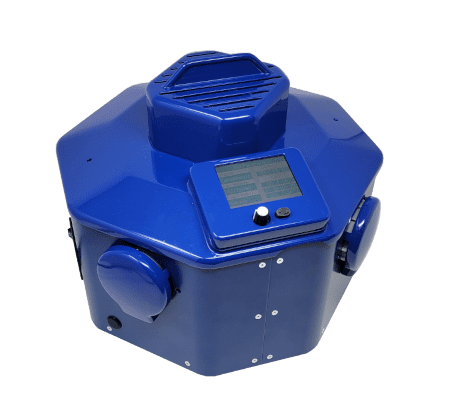

PhotoRedOx Box UV-Vis

HCK1022-01-001





Features

• • Single Wavelength LED irradiation from 254 nm to 808 nm
  • Light intensity control with digital display
  • Temperature monitoring and control from RT to 60°C
  • Built in stir plate
  • Screen multiple reactions simultaneously

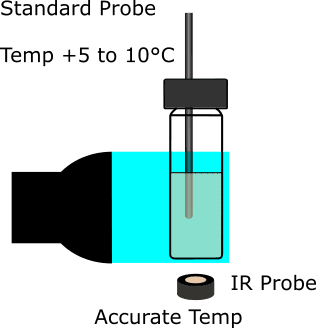

IR Temperature Monitoring

Monitoring the temperature of a photochemical reaction can be difficult and error prone based on how the temperature is being determined and the type of temperature in the probe.

Upon irradiation with high powered light from LEDs, the vial, solvent, reaction, photoreactor and the temperature probe itself can increase in temperature.  For the purposes of safety, all of these measurements are important.  To understand our chemical reaction, what is most important is the true temperature in the solution.

The instrument uses a IR probe to accurately measure temperature while the reaction is being irradiated was determined.

Fit Multiple Vial Sizes

8x 4 ml vials holder

HCK1022-01-002

also available
8x 8 ml vials holder HCK1022-01-003
4x 20 ml vials holder HCK1022-01-004

Numerous Wavelengths Available

Compatible with EvoluChem PF dimmable LEDs

This photoreactor uses (4) PF Dimmable LEDs
254 nm to 808 nm available
