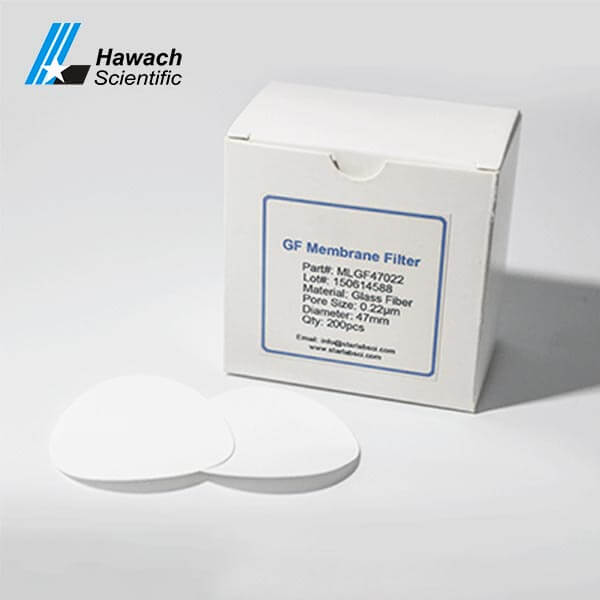

[Hawach Scientific] Microporous Glass Fiber Membrane Filter

[Hawach Scientific]  Microporous Glass Fiber Membrane Filter



MLGF13045	0.45	13	No	160pcs
MLGF25045	0.45	25	No	160pcs
MLGF47045	0.45	47	No	40pcs
MLGF50045	0.45	50	No	40pcs
MLGF60045	0.45	60	No	40pcs
MLGF90045	0.45	90	No	20pcs
MLGF100045	0.45	100	No	20pcs
MLGF106045	0.45	106	No	20pcs
MLGF120045	0.45	120	No	20pcs
MLGF142045	0.45	142	No	20pcs
MLGF150045	0.45	150	No	20pcs
MLGF200045	0.45	200	No	20pcs
MLGF250045	0.45	250	No	20pcs
MLGF13100	1.0	13	No	160pcs
MLGF25100	1.0	25	No	160pcs
MLGF47100	1.0	47	No	40pcs
MLGF50100	1.0	50	No	40pcs
MLGF60100	1.0	60	No	40pcs
MLGF90100	1.0	90	No	20pcs
MLGF100100	1.0	100	No	20pcs
MLGF106100	1.0	106	No	20pcs
MLGF120100	1.0	120	No	20pcs
MLGF142100	1.0	142	No	20pcs
MLGF150100	1.0	150	No	20pcs
MLGF200100	1.0	200	No	20pcs
MLGF250100	1.0	250	No	20pcs
MLGF13160	1.6	13	No	160pcs
MLGF25160	1.6	25	No	160pcs
MLGF47160	1.6	47	No	40pcs
MLGF50160	1.6	50	No	40pcs
MLGF60160	1.6	60	No	40pcs
MLGF90160	1.6	90	No	20pcs
MLGF100160	1.6	100	No	20pcs
MLGF106160	1.6	106	No	20pcs
MLGF120160	1.6	120	No	20pcs
MLGF142160	1.6	142	No	20pcs
MLGF150160	1.6	150	No	20pcs
MLGF200160	1.6	200	No	20pcs
MLGF250160	1.6	250	No	20pcs



Hawach microporous glass fiber(GF) membrane filter has two types, one is equivalent to Whatman GF/C, a microporous glass fiber membrane filter without binder, and another one is glass fiber with the binder. GF Membrane Filter can be used alone or in conjunction with other membrane filters together, the working function like pre-filter.

Advantages

• Both with the binder and without binder GF membrane filter are available;
• Small order acceptable.

Features of Microporous Glass Fiber Membrane Filter

• Hydrophobic membrane filter/ Hydrophobic filter paper;
• Fast flow rates;
• Can work with most difficult samples with less hand pressure;
• Have disc and roll two types.

Applications

Commonly used for contaminated samples and can be used as a pre-filter to remove large particulates prior to further filtration and highly viscous samples.



Technical Data

Filter MediaHydrophilic Glass Fiber



Pore Size	0.45 μm, 1.0 μm, 1.6 μm
Diameter	13 mm, 25 mm, 47 mm, 50 mm, 60 mm, 90 mm, 100 mm, 106 mm, 120 mm, 142 mm, 150 mm, 200 mm, 250 mm
Flow Rate@23 °C, H2O	≧181mL/cm2.min@1 bar(0.45 μm)
Thickness	350 – 400 μm
Chemical compatibility	Organic solvent
Maximum Operating Pressure	4.2 bar@23 °C	1.5 bar@85 °C
